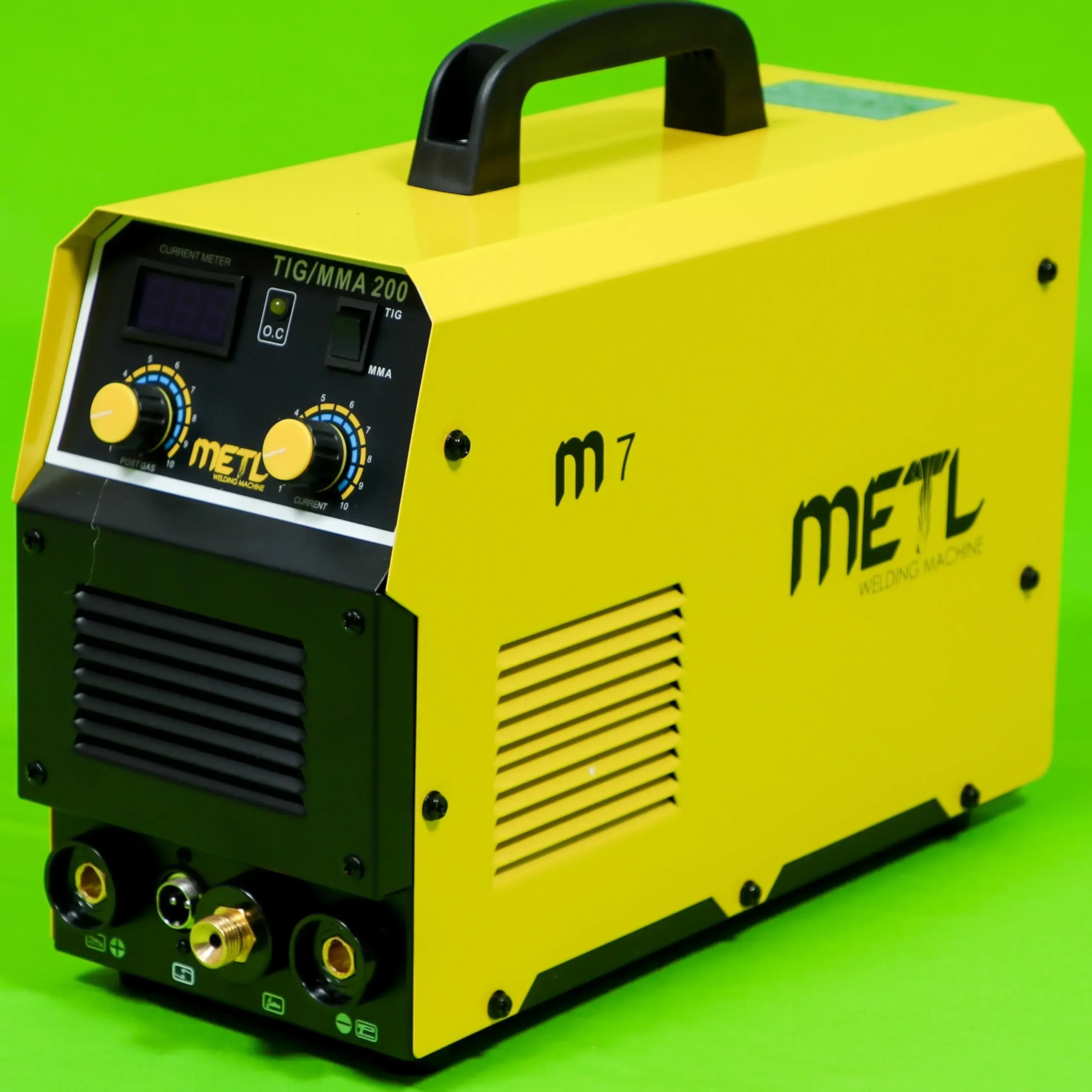

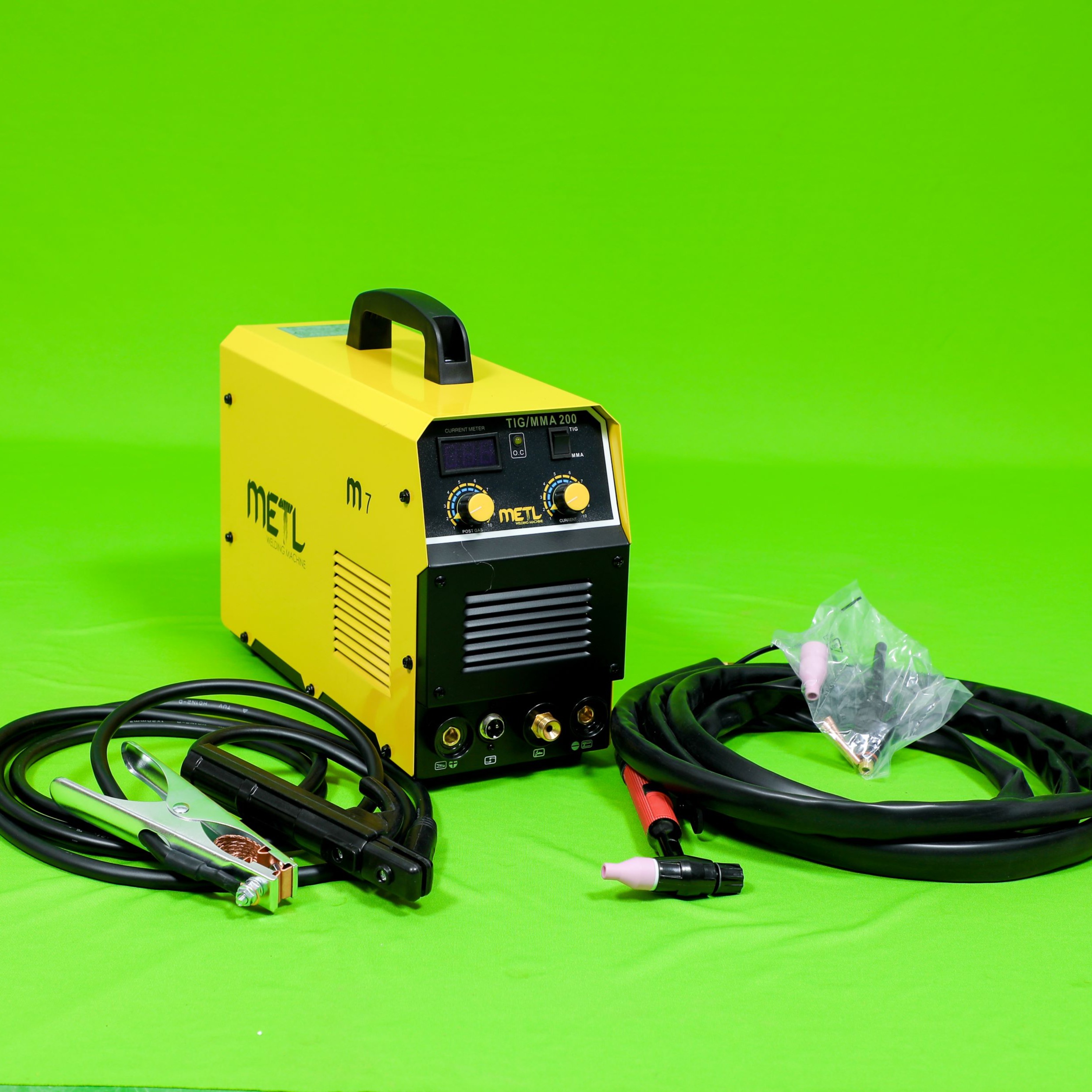

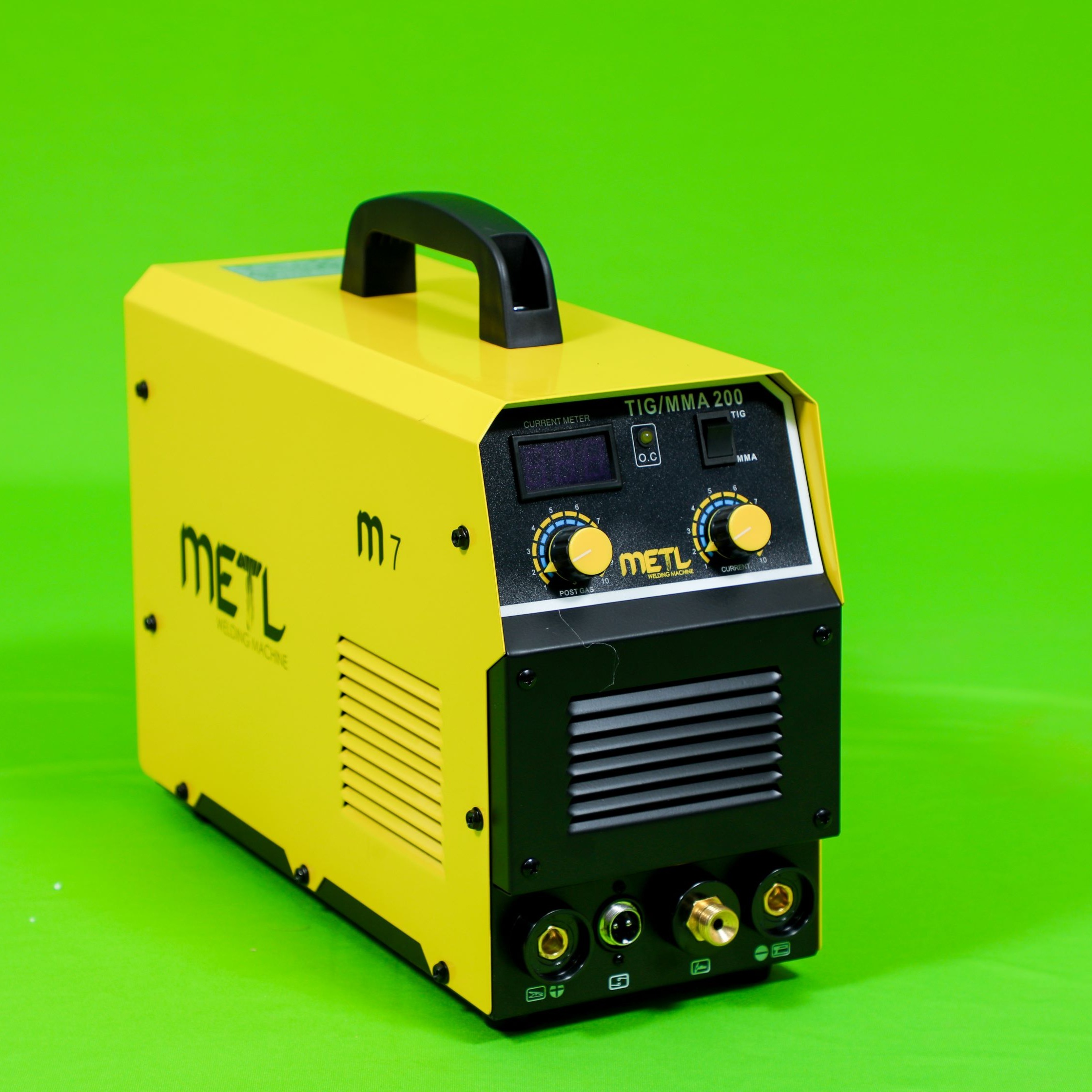

NIKO METL M7 WELDING MACHINE MMAARC

METL M7 WELDING MACHINE MMA/ARC

Rated input voltage (V)- 220

Rated input frequency (HZ) – 50/60

Rated input power (KVA)- “TIG: 3.7KVA

MMA: 6KVA”

Rated output power (KVA) – “TIG: 2.3KVA

MMA:3.7KVA”

No-load voltage (V) – 60

output current range (A) – 10-145

Rated output voltage (V) -“TIG: 15.8V

MMA:25.8V”

Duty cycle (%) – 60

Efficiency (%) – 0.85

power factor (cos )- 0.73

Insulation class – F

Protection class – IP21S

Rod diameter (MM)- 1.6-3.2

Wire diameter (MM)

N.W (KGS)- 6.4

G.W(KGS) – 7.4

Packing size (MM)- 525*220*345
